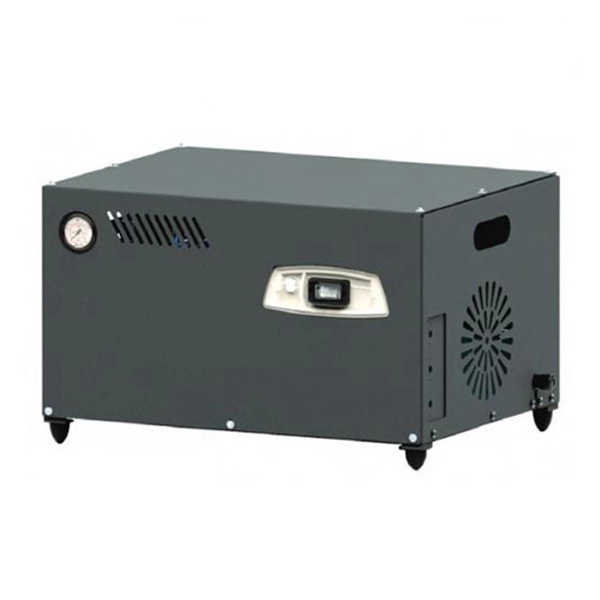

PROFESSIONAL GT Misting Pump – High Flow
Price range: $ 2.872,70 through $ 3.045,20
High-flow misting pump for 75–150 nozzles with BPS by-pass cooling, glycerin gauge and industrial motor. 70 bar (1000 psi), 8.5–14 L/min (2.20–3.70 gpm); 230 V 1PH or 400 V 3PH at 50/60 Hz.
Ships from:
Europe
EuropeNeed expert advice or a customized quotation? Get a Quote.
- Description
- Additional information
- Reviews (0)
Description
The PROFESSIONAL GT misting pump is a triplex high-pressure crankshaft unit with 3 ceramic plungers and brass head, designed for large systems with 75–150 nozzles. BPS by-pass cooling reduces overheating and water waste.
Key Features
- Working pressure: 70 bar (1000 psi)
- Pressure regulating valve with by-pass; glycerin gauge
- In-line solenoid (230 V), safety valve
- Industrial motor: 1PH 230 V 3.0 HP or 3PH 400 V 5.5 HP
- ON-OFF switch; thermal overload; electric float switch (dry-run protection)
- Weatherproof steel skid; anti-vibration feet; CE compliant
Technical Specifications
- Flow range: 8.5–14 L/min (2.20–3.70 gpm)
- Voltage/Frequency: 230 V 1PH or 400 V 3PH – 50/60 Hz
- Dimensions (W×H×D): 680 × 460 × 380 mm (≈ 26.8 × 18.1 × 15.0 in)
- Weight: 58 kg (≈ 127.9 lb)
Models
| Code | Nozzles* (50/60 Hz) | Output (L/min) | Output (gpm) | Voltage | Power (W) | Current (A @50 Hz) |
|---|---|---|---|---|---|---|
| MTC307133 | 75–100 / 90–120 | 8.5 / 10.1 | 2.20 / 2.70 | 230 V | 1800 | 8.6 |
| MTC307134 | 100–125 / 120–150 | 10.0 / 12.0 | 2.60 / 3.20 | 230 V | 2050 | 10.6 |
| MTC307135 | 125–150 / 150–180 | 12.0 / 14.0 | 3.10 / 3.70 | 400 V | 2200 | 5.8 |
*for 0.20 mm (0.008″) nozzles
Additional information
| Voltage | 230V/50Hz, 230V/60Hz, 400V/50Hz, 400V/60Hz |
|---|---|
| Flow Rate | 8.5 L/min (2.20 gpm), 10 L/min (2.60 gpm), 12 L/min (3.10gpm) |
