Misting Fan Kit – 24″ Oscillating | 2 to 10 Fans
Price range: $ 1.953,85 through $ 9.025,20
Heavy-duty misting fan kit with 2 to 10 wall-mounted 24″ fans, designed for wide-area outdoor cooling. Includes tubing, rings, fittings. Pump not included.
Note: A high-pressure pump is required and can be ordered separately here.
Ships from:
Europe
EuropeNeed expert advice or a customized quotation? Get a Quote.
- Description
- Additional information
- Reviews (0)
Description
This professional 24″ Oscillating Misting Fan Kit is built for heavy-duty cooling performance.
It includes high-flow fans, 5-nozzle misting rings, tubing, and all necessary fittings.
Suitable for event venues, restaurants, and large outdoor areas.
Note: This kit does not include a pump. A compatible high-pressure pump is required and can be ordered separately
here.

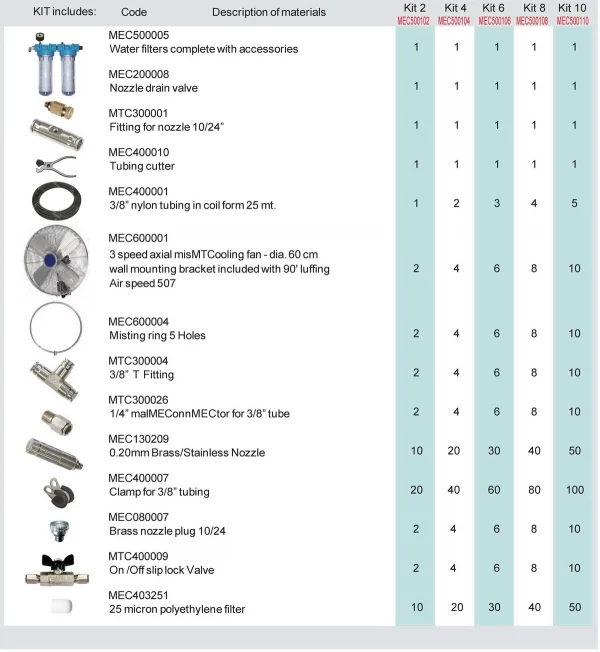

Included Components
| Code | Description | Kit (2 Fans) | Kit (4 Fans) | Kit (6 Fans) | Kit (8 Fans) | Kit (10 Fans) |
|---|---|---|---|---|---|---|
| MEC500005 | Water filter kit with accessories | 1 | 1 | 1 | 1 | 1 |
| MEC200008 | Nozzle drain valve | 1 | 1 | 1 | 1 | 1 |
| MTC300001 | Fitting for nozzle 10/24” | 1 | 1 | 1 | 1 | 1 |
| MEC400010 | Tubing cutter | 1 | 1 | 1 | 1 | 1 |
| MEC400001 | 3/8” nylon tubing – 25 m coil | 1 | 2 | 3 | 4 | 5 |
| MEC600001 | 24″ wall-mounted oscillating fan | 2 | 4 | 6 | 8 | 10 |
| MEC600004 | Misting ring – 5 nozzles | 2 | 4 | 6 | 8 | 10 |
| MTC300004 | 3/8″ T fitting | 2 | 4 | 6 | 8 | 10 |
| MTC300026 | 1/4″ male connector for 3/8″ tube | 2 | 4 | 6 | 8 | 10 |
| MEC130209 | 0.20 mm Brass/Stainless nozzle | 10 | 20 | 30 | 40 | 50 |
| MEC400007 | Clamp for 3/8″ tubing | 20 | 40 | 60 | 80 | 100 |
| MEC080007 | Brass nozzle plug 10/24 | 2 | 4 | 6 | 8 | 10 |
| MTC400009 | On/Off slip-lock valve | 2 | 4 | 6 | 8 | 10 |
| MEC403251 | 25 micron polyethylene filter | 10 | 20 | 30 | 40 | 50 |
Applications
Ideal for high-output misting installations in commercial, industrial, or entertainment environments that require coverage over wide areas.
Additional information
| Voltage | 120V/60Hz, 230V/50Hz, 230V/60Hz |
|---|---|
| Number of Fans | 2 Fans, 4 Fans, 6 Fans, 8 Fans, 10 Fans |
