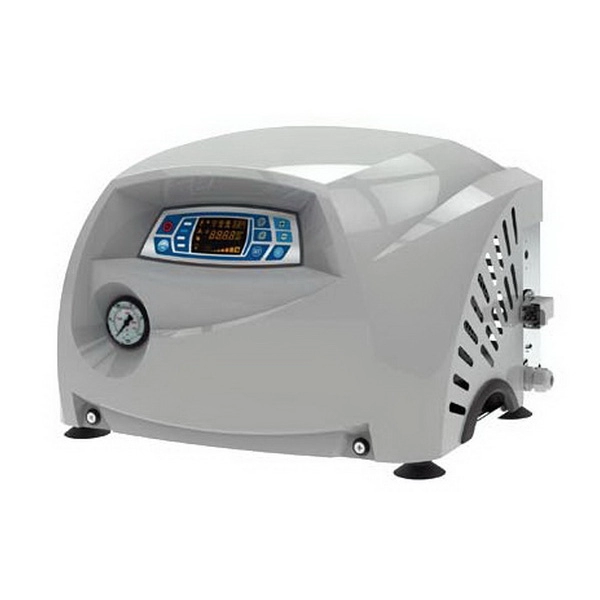

ARCTIC HT Misting Pump – Humidistat & Thermostat
$ 2.070,00
Professional misting/ humidification pump with Advanced Timer 2HT, built-in humidistat (5–95% RH) and thermostat (PT‑100), SSC anti‑flooding, QES low‑noise motor. 70 bar (1000 psi), up to 6 L/min (1.59 gpm), 8–130 nozzles; 230/120 V 50/60 Hz.
Ships from:
Europe
EuropeNeed expert advice or a customized quotation? Get a Quote.
- Description
- Additional information
- Reviews (0)
Description
The ARCTIC HT misting pump combines Advanced Timer 2HT (hourly/daily clock + cyclic T1/T2/T3) with an integrated humidistat (5–95% RH) and digital thermostat (PT‑100). QES motors ensure low‑noise, efficient operation; SSC stops the pump automatically in case of a leak.
Smart, Safe & Precise
Features include anti‑flooding automatic shutdown, lack‑of‑water shutdown and optional low‑voltage remote ON/OFF. Ideal for professional humidification and cooling.
Key Features
- 70 bar brass‑head pump with 3 coated ceramic plungers
- Glycerin‑filled pressure gauge; 2 in‑line solenoids
- Weatherproof steel/plastic cover; thermal protection; ON/OFF switch
- Noise level: 60 dB(A) average; CE compliant
Technical Specifications
- Nozzles capacity: 8–130 (0.15 mm / 0.006″)
- Voltage / Frequency: 230 V or 120 V – 50/60 Hz
- Dimensions (W×H×D): 472 × 374 × 332 mm (≈ 18.6 × 14.7 × 13.1 in)
- Weight: 20–22 kg (≈ 44–48.5 lb)
Models
| Code | Nozzles* (50/60 Hz) | Output (L/min) | Output (gpm) | Power (W) | Current (A @ 50 Hz) |
|---|---|---|---|---|---|
| MTC307241 | 8–22 / 10–26 | 1.0 / 1.2 | 0.26 / 0.32 | 550 | 2.8 |
| MTC307242 | 23–44 / 27–52 | 2.0 / 2.4 | 0.53 / 0.64 | 680 | 3.1 |
| MTC307243 | 45–66 / 53–79 | 3.0 / 3.6 | 0.78 / 0.95 | 815 | 3.7 |
| MTC307244 | 67–88 / 80–105 | 4.0 / 4.8 | 1.06 / 1.27 | 900 | 4.1 |
| MTC307246 | 89–130 / 106–156 | 6.0 / 7.2 | 1.59 / 1.90 | 1250 | 5.7 |
*for 0.15 mm (0.006″) nozzles
Additional information
| Voltage | 120V/60Hz, 230V/50Hz, 230V/60Hz |
|---|---|
| Flow Rate | 1 L/min (0.26 gpm), 2 L/min (0.53 gpm), 3 L/min ( 0.78 gpm), 4 L/min (1.06 gpm), 6 L/min (1.90 gpm) |
Only logged in customers who have purchased this product may leave a review.
Related Products
This product has multiple variants. The options may be chosen on the product page
Select optionsThis product has multiple variants. The options may be chosen on the product page
BREEZY TIME - High Pressure Misting Pump
$ 1.276,50
This product has multiple variants. The options may be chosen on the product page
Select optionsThis product has multiple variants. The options may be chosen on the product page
DELTA KEM S.Steel Misting Pump - Chemical Resistant
$ 4.679,35
This product has multiple variants. The options may be chosen on the product page
Select optionsThis product has multiple variants. The options may be chosen on the product page
MISTMATIC VAR Misting Pump - Variable Flow VFD
$ 4.311,35
This product has multiple variants. The options may be chosen on the product page
Select optionsThis product has multiple variants. The options may be chosen on the product page
NT-FOG TIME Misting Pump - Advanced Timer
Price range: $ 4.003,15 through $ 4.375,75
This product has multiple variants. The options may be chosen on the product page
Select optionsThis product has multiple variants. The options may be chosen on the product page

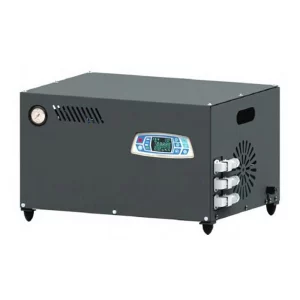

PROFESSIONAL TIME GT Misting Pump - Advanced Timer 2HT
